2400 Series SMU

2400 Series SMU

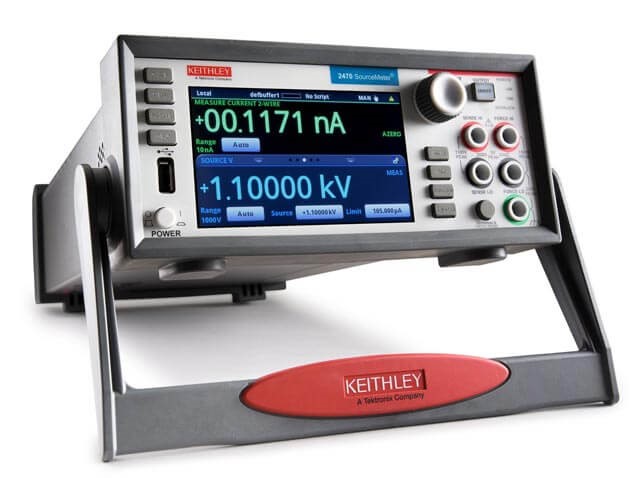

Keithley 2400 Series SMU instruments offer four-quadrant precision voltage and current source/load coupled with measurement now on a touchscreen user interface. These instruments can simultaneously source and measure current from 10 fA to 10 A pulse and/or voltage from 100nV to 1100V, for 1000W pulse and 100W DC total power.

2400 Series SMU

Key Features

  • Five instruments in one (IV Source, IVR Measure)
  • Five models: 20–100 W DC, 1000 W pulsed, 1100 V to 1 µV
  • Source and sink (4-quadrant) operation
  • 012% basic measure accuracy with 6½-digit resolution
  • 2-, 4-, and 6-wire remote V-source and measure sensing
  • 1700 readings/second at 4½ digits via GPIB
  • Pass/Fail comparator for fast sorting/binning
  • Programmable DIO port for automation/handler/prober control (except 2401)
  • Standard SCPI GPIB, RS-232 and Keithley Trigger Link interfaces
  • Download free KickStart I-V Characterization Software for device characterization.
