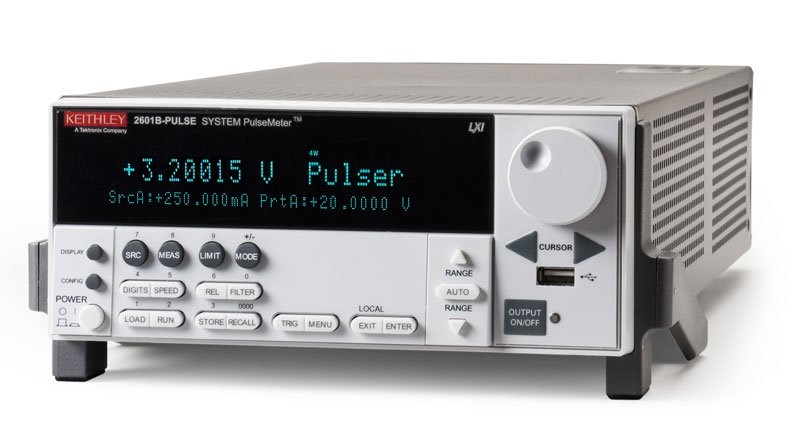

2601B-PULSE 10 µsec Pulser/SMU

2601B-PULSE 10 µsec Pulser/SMU

The System SourceMeter® 10 µsec Pulser/Source Measure Unit (SMU) Instrument combines the power of a high current/high speed pulser with measure and the full functionality of a traditional SMU in a single instrument. Its impressive 10 A @ 10 V at 10 μs pulse width and full 1 MS/s digitizing capabilities significantly boost productivity in applications ranging from benchtop characterization through highly automated pulsed I-V production test.

2601B-PULSE 10 µsec Pulser/SMU

Key Features

  • Industry leading 10 A @ 10 V, 10 microsecond pulse output
  • No tuning required; works with inductive loads up to 3 μH
  • Dual 1 Megasample/second digitizers for high speed I/V pulse measurements (pulser function only)
  • DC capability up to ±40 V @ ±1.0 A, 40 Watt
  • TSP technology embeds complete test programs inside the instrument for best-in-class system-level throughput
  • TSP-Link expansion technology for multi-channel parallel test without a mainframe
  • USB 2.0, LXI Core, GPIB, RS-232, and digital I/O interfaces
  • Supported in the Keithley KickStart non-programming software tool
