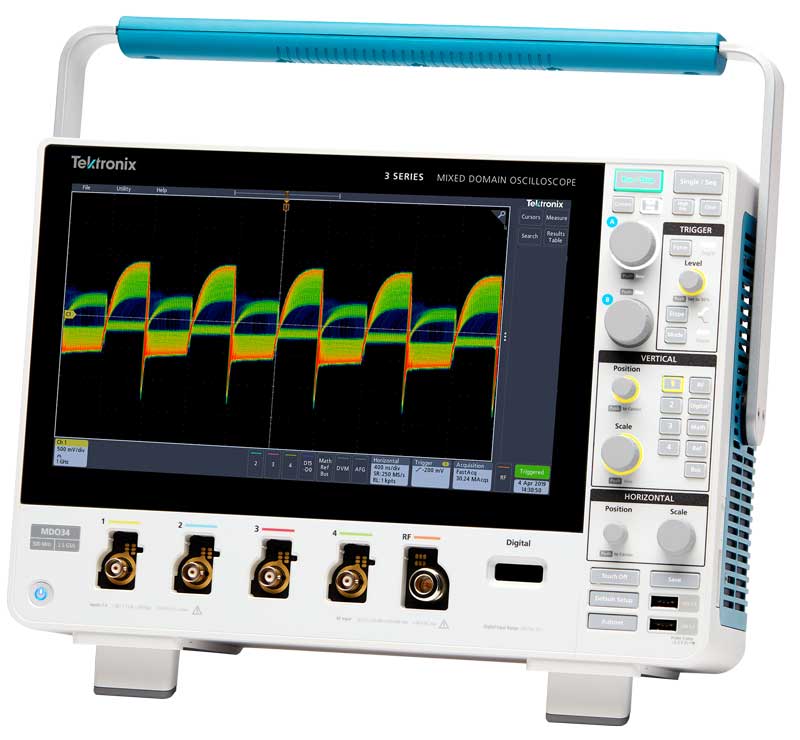

3 Series MDO Mixed Domain Oscilloscope

3 Series MDO Mixed Domain Oscilloscope

Experience a big, high-definition display in a compact, portable scope. An award-winning, made-for-touch interface turns the learning curve into a step function. The unique built-in spectrum analyzer option makes it great for RF analysis.

Key performance specifications

  • 2 and 4 analog channel models
  • 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz bandwidth models
  • Bandwidth is upgradable (up to 1 GHz)
  • Up to 5 GS/s sample rate
  • 10 M record length on all channels
  • >280,000 wfm/s maximum waveform capture rate
  • Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz or 500 MHz analog bandwidth
  • Spectrum Analyzer (optional)
      • Frequency range: 9 kHz - 1 GHz or 3 GHz
      • Ultra-wide capture bandwidth up to 3 GHz
  • Arbitrary Function Generator (optional)
      • 13 predefined waveform types
      • 50 MHz waveform generation
      • 128 k arbitrary generator record length
      • 250 MS/s arbitrary generator sample rate
  • Digital Channels (optional)
      • 16 digital channels
      • 10 M record length on all channels
      • 2 ps timing resolution
  • Serial Bus Decode, Triggering and Search (optional)
      • Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, ARINC429, and Audio standards
  • Digital Voltmeter / Frequency Counter (Free with product registration)
      • 4-digit DC, AC RMS, and DC+AC RMS voltage measurements
      • 5-digit frequency measurements
