AC Power Source Model 6500 series

AC Power Source Model 6500 series

The global AC power testing requirements demand more sophisticated AC Power Source that is capable of simulating a wide variety of AC line conditions, harmonic waveforms, accurate power measurement and analysis. The Chroma 6500 series Programmable AC Power Source delivers the right solution to simulate all kinds of normal/abnormal input conditions and measure the critical characteristics of the product under test. It can be used for R&D design characterization, production testing, and QA verification of commercial, industrial, and aerospace electronic products.

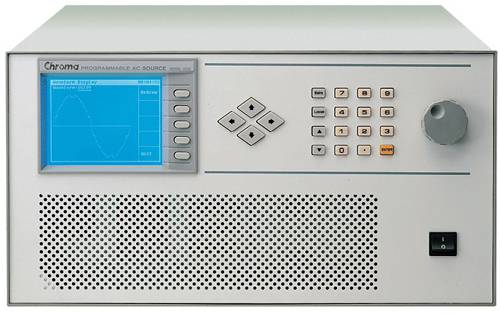

AC Power Source Model 6500 series

Key Features:

  • Direct Digital Synthesis (DDS) waveform generation
  • Programmable Sine, Square, or Clipped Sine waveform output
  • Programmable voltage, current limit, frequency, phase, and distortion
  • Power line disturbances simulation capability
  • 30 factory installed harmonic waveforms in the waveform library
  • User programmable harmonic waveforms
  • User programmable sequential output waveforms for auto-execution
  • Powerful measurement of Vrms, Irms, Ipk+, Ipk-, power, frequency, crest factor, power factor, inrush current, VA, VAR, etc.
  • Built-in power factor correction circuit provides input power factor of over 0.98 to meet the IEC regulations
  • Advanced PWM technology to deliver high power output in a light and compact rackmountable package
  • Built-in output isolation relays
  • User-definable power-on state
  • TTL output to signal any output transition for ATE application
  • Analog Programming Interface for external amplitude control
  • Optional GPIB, RS-232 interface
  • List mode transient power line disturbances simulation for Voltage Dip & Variation to meet IEC 61000-4-11
  • Easy use graphic user interface: softpanel (Option)
