AWG5200 Arbitrary Waveform Generator

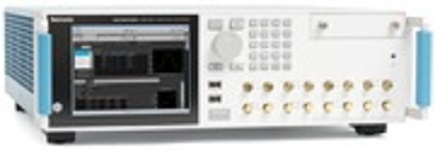

AWG5200 Arbitrary Waveform Generator

The AWG5200 Arbitrary Waveform Generator meets demanding signal generation needs with high signal fidelity and the ability to scale up to 32 or more channels with multi-unit synchronization at an affordable price. Ideal for advanced research, electronic test and radar, and electronic warfare system design and test.

AWG5200 Arbitrary Waveform Generator

Key performance specifications

  • Sample rates up to 10 GS/s (with 2x interpolation)
  • 2, 4, and 8 channel configurations
  • -70 dBc spurious free dynamic range
  • 16 bits vertical resolution
  • 2 GSample waveform memory per channel

Key features

  • Complete solution for complex RF signal generation in a single box
    • Direct generation of signals with carriers up to 4 GHz, removing the need for external RF conversion
  • Simulate real-world analog effects on high speed digital data streams
  • Generate high precision RF signals
    • Spurious Free Dynamic Range performance better than -70 dBc
  • Create long complex waveforms without compromising bandwidth
    • Up to 2 GSamples of Waveform Memory plays 400 ms of data at 5 GS/s and 800 ms of data at 2.5 GS/s
  • Synchronize multiple units to achieve a multi-channel high speed AWG system
  • Fully operational without external PC
    • Built-in display and buttons make it possible to quickly select, edit, play waveforms and trigger on events directly from the AWG front panel
  • Simulate real-world environments by playing back captured signals
    • Waveforms captured with Oscilloscopes or Real-Time Spectrum Analyzers can be played back, edited or re-sampled on the AWG
  • Smooth transition from simulation to the real-world testing environment
    • Waveform vectors imported from third-party tools such as MATLAB



Applications

  • RF/MW waveform generation for communications and defense electronics testing and development
      • Output RF signals directly up to 4 GHz
  • Leading edge research in electronics, physics & chemistry
      • High speed, low jitter signal source generates uniquely specified analog signals, fast pulses, data streams and clocks
