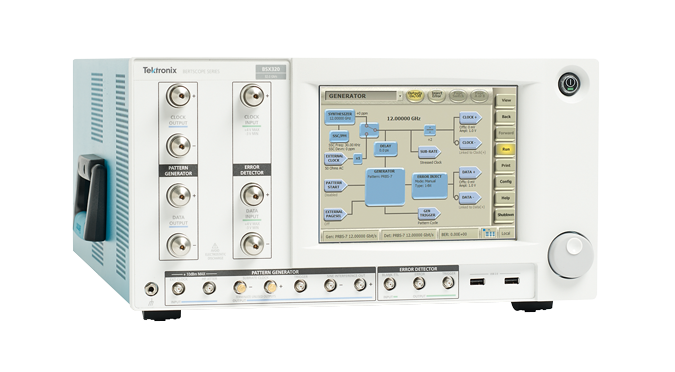

BSX Series BERTScope

BSX Series BERTScope

A fast-moving market requires faster Rx test processes and workflows. The BSX Series BERTScope® is the quickest path to compliance. This BERT receiver test solution has unique features that take the complexity out of receiver testing and brings confidence to Gen3/4 designs.

  • Single solution for Receiver stress testing, debug and compliance.
  • Test Gen3/Gen4 standards - PCIe, SAS/SATA, USB3.1, DP + propriety standards.
  • Handshaking and link training for devices running up to 32 Gb/s.A fast-moving market requires faster Rx test processes and workflows. The BSX Series BERTScope® is the quickest path to compliance. This BERT receiver test solution has unique features that take the complexity out of receiver testing and brings confidence to Gen3/4 designs.
    • Single solution for Receiver stress testing, debug and compliance.
    • Test Gen3/Gen4 standards - PCIe, SAS/SATA, USB3.1, DP + propriety standards.
    • Handshaking and link training for devices running up to 32 Gb/s.A fast-moving market requires faster Rx test processes and workflows. The BSX Series BERTScope® is the quickest path to compliance. This BERT receiver test solution has unique features that take the complexity out of receiver testing and brings confidence to Gen3/4 designs.
      • Single solution for Receiver stress testing, debug and compliance.
      • Test Gen3/Gen4 standards - PCIe, SAS/SATA, USB3.1, DP + propriety standards.
      • Handshaking and link training for devices running up to 32 Gb/s.A fast-moving market requires faster Rx test processes and workflows. The BSX Series BERTScope® is the quickest path to compliance. This BERT receiver test solution has unique features that take the complexity out of receiver testing and brings confidence to Gen3/4 designs.
        • Single solution for Receiver stress testing, debug and compliance.
        • Test Gen3/Gen4 standards - PCIe, SAS/SATA, USB3.1, DP + propriety standards.
        • Handshaking and link training for devices running up to 32 Gb/s.A fast-moving market requires faster Rx test processes and workflows. The BSX Series BERTScope® is the quickest path to compliance. This BERT receiver test solution has unique features that take the complexity out of receiver testing and brings confidence to Gen3/4 designs.
          • Single solution for Receiver stress testing, debug and compliance.
          • Test Gen3/Gen4 standards - PCIe, SAS/SATA, USB3.1, DP + propriety standards.
          • Handshaking and link training for devices running up to 32 Gb/s.

Key performance specifications

  • Pattern Generation and Error Analysis up to 32 Gb/s
  • Optional built-in 4-tap Tx equalization with support for interactive link training
  • Protocol-oriented and bit-oriented multi-chain pattern sequencing with enhanced pattern/sequence editor
  • User-defined detector pattern matching with stimulus-response feedback
  • Patented Error Location Analysis™ goes beyond BER measurement to provide insight into the sources of errors through analysis of correlations and deterministic error patterns
  • Optional Forward Error Correction analysis provides for simulation of post-FEC error rate based upon measured error location patterns
  • Integrated Eye Diagram Analysis with BER Correlation including Mask Testing, Jitter Peak, BER Contour
  • Optional Jitter Map Comprehensive Jitter Decomposition - with Long Pattern (i.e. PRBS-31) Jitter

Key features

  • Provides a single solution for Receiver stress testing, debug and compliance
  • Test Gen3 and Gen4 standards including PCIe, SAS, and USB3.1 and proprietary standards
  • DUT handshaking capability above16 Gb/s supporting RX test requirements for loopback initiation and adaptive link training for key standards such as PCIe
  • Protocol-aware pattern generation and error detection supports flexible stimulus response programmability and debugging of handshaking issues.
  • Forward error correction (FEC) emulation option supports measurement of BER both before and after error correction for commonly used Reed-Solomon FEC codes.
  • Calibration and test automation software available for key standards

Applications

    • Design verification including signal integrity, jitter, and timing analysis
    • Design characterization for high-speed, sophisticated designs
    • Design/Verification of high-speed I/O components and systems including DUT handshaking
    • Signal integrity analysis – mask testing, jitter peak, BER contour, jitter map, and forward error correction emulation
