DC Electronic Load Model 6310A series

DC Electronic Load Model 6310A series

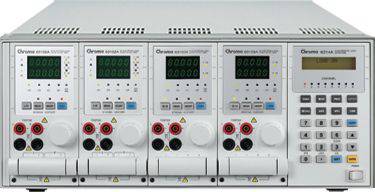

The Chroma 6310A series Programmable DC Electronic Load is ideal for the test and evaluation of multi-output AC/DC power supplies, DC/DC converters, chargers and power electronic components. It is designed for applications in research and development, production, and incoming inspection. The system is configured by plugging the user selectable load modules into the system mainframe. The user interfaces include an ergonomically designed user friendly keypad on the front panel and the following computer interfaces: RS-232, USB or GPIB.

DC Electronic Load Model 6310A series

Key Features

  • Max Power: 200W, 100W×2(Dual), 30W & 250W, 300W, 600W, 1200W
  • Wide range 0~600V operating voltage
  • Compatibility between 6310 and 6310A
  • Up to 8 channels in one mainframe, for testing multiple output SMPS
  • Parallel load modules up to 1200W for high current and power application
  • Synchronization with multiple loads
  • Flexible CC, CR, CP and CV operation modes
  • Dynamic loading with speeds up to 20kHz
  • Fast response of 0.32mA/μs~10A/μs slew rate
  • Minimum input resistance allowing load to sink high current at low voltage
  • Real time power supply load transient response simulation and output measurement
  • User programmable 100 sequences. Front panel input status for user-friendly operating
  • High/Low limits of testing parameters to test GO/NG
  • Digital I/O control
  • Over current protection (OCP) testing function
  • 16-bit precision voltage and current measurement with dual-range
  • Remote sensing capability
  • Short circuit test
  • Self-test at power-on
  • Full Protection: OC, OP, OT protection and OV alarm
  • USB, GPIB & RS-232 interfaces
