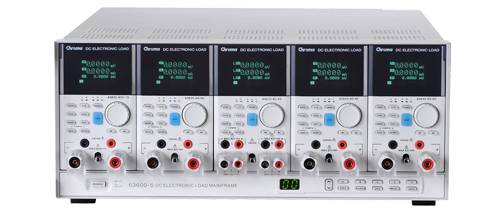

DC Electronic Load Model 63600 series

DC Electronic Load Model 63600 series

Chroma's 63600 series DC electronic loads are designed for testing multi-output AC/DC power supplies, DC/DC converters, chargers, batteries, server power supplies, and power electronic components. They are excellent for research, development, produc t ion, and incoming inspection applications.

DC Electronic Load Model 63600 series

Key Features:

  • Max. Power : 100W x 2(Dual), 300W & 400W
  • Voltage Range : up to 600V
  • 5 module mainframe Max. 2000W, load modules up to 400W/ea
  • Up to 10 channels in one mainframe, fit for testing multiple output SMPS
  • 0.4V @ 80A (Typical) low voltage operating characteristics
  • Flexible CC, CR, CV and CP operation modes
  • CZ mode for turn on capacitive load simulation
  • Parallel mode for high current and power application up to 2kW
  • User defined waveform
  • Multi Channel synchronous control
  • Auto frequency sweep up to 50kHz
  • Real time power supply load transient response simulation and Vpk+/- measurement
  • User programmable 100 sequential front panel input status for user-friendly operating
  • Precision voltage and current measurement
  • Precision high speed digitizing measurement/data capture
  • Voltage, Current and Pmax measurement for OCP/OLP testing
  • Timing measurement for batteries
  • Short circuit simulation
  • Self-test at power-on
  • Full Protection : OC, OP, OT protection and OV alarm
  • Ethernet, USB and GPIB interfaces
