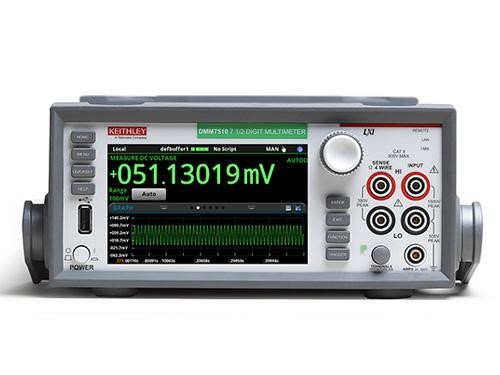

DMM7510
The DMM7510 combines a precision, high-resolution digital multimeter (DMM), graphical touchscreen display, and high-speed, high-resolution digitizer to create the first graphical sampling multimeter. With pA-level sensitivity and 1Msample/s sampling, it accurately measures ultra-low sleep mode currents and transmit drain currents from wireless devices.

DMM7510
Overview
Model
Download
Key Features
- Precision multimeter with 3½- to 7½-digit resolution
- Capture and display waveforms or transients with 1 MS/sec digitizer
- Large internal memory buffer; store over 11 million readings in standard mode or 27.5 million in compact mode
- 14 PPM basic one-year DCV accuracy
- 100 mV, 1 Ω, and 10 µA ranges offer the sensitivity needed for measuring low level signals such as portable device sleep mode currents
- Make accurate low resistance measurements with offset compensated ohms, four-wire, and dry circuit functions
- Auto-calibration feature improves accuracy and stability by minimizing temperature and time drift
- Display more with five-inch, high resolution touchscreen interface
- Readings and screen images can be saved quickly via the front panel USB memory port
- Multiple connectivity options: GPIB, USB, and LXIcompliant LAN interfaces
- Two-year specifications enable longer calibration cycles
