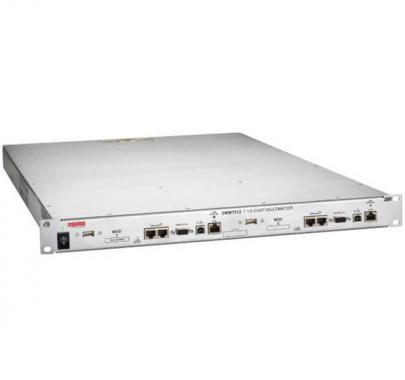

DMM7512 Dual Channel 7½-Digit Sampling Multimeter

DMM7512 Dual Channel 7½-Digit Sampling Multimeter

The DMM7512 combines two full-function, high accuracy, high sampling speed DMMs into a 1U high, full rack wide form factor chassis. The compact chassis saves rack space in high-instrument density test systems without compromising measurement performance. Each DMM has identical functionality, and they are entirely independent of each other.



DMM7512 Dual Channel 7½-Digit Sampling Multimeter

Key Features

  • Two high-precision, 7½-digit DMMs in a 1U high, full rack width chassis
  • No space requirements between instruments minimizes rack space
  • Capture waveforms or identify transients with two 1 Msample/s 18-bit digitizers
  • Trigger a waveform measurement on a signal level, a rising or falling edge, a window, or a digital trigger
  • Store up to 27.5M timestamped readings on a waveform
  • Basic one-year DC Voltage accuracy as low as 14 ppm
  • 10 nV, 0.1 µΩ, and 1 pA sensitivities for making high resolution low level measurements such as measurements of portable device sleep currents
  • High accuracy, low resistance measurements with offset compensated ohms, four-wire measurement, and dry circuit functions
  • Auto-calibration improves accuracy and stability by minimizing temperature and time drift
  • USBTMC-compliant and LAN LXI-compliant interfaces
  • Reduce test time by executing test scripts with the Embedded Test Script Processor, which saves PC command communication overhead
  • Tight synchronization between the two DMMs using TSP-Link® communication
  • Reduce life cycle costs with a two-year calibration interval
