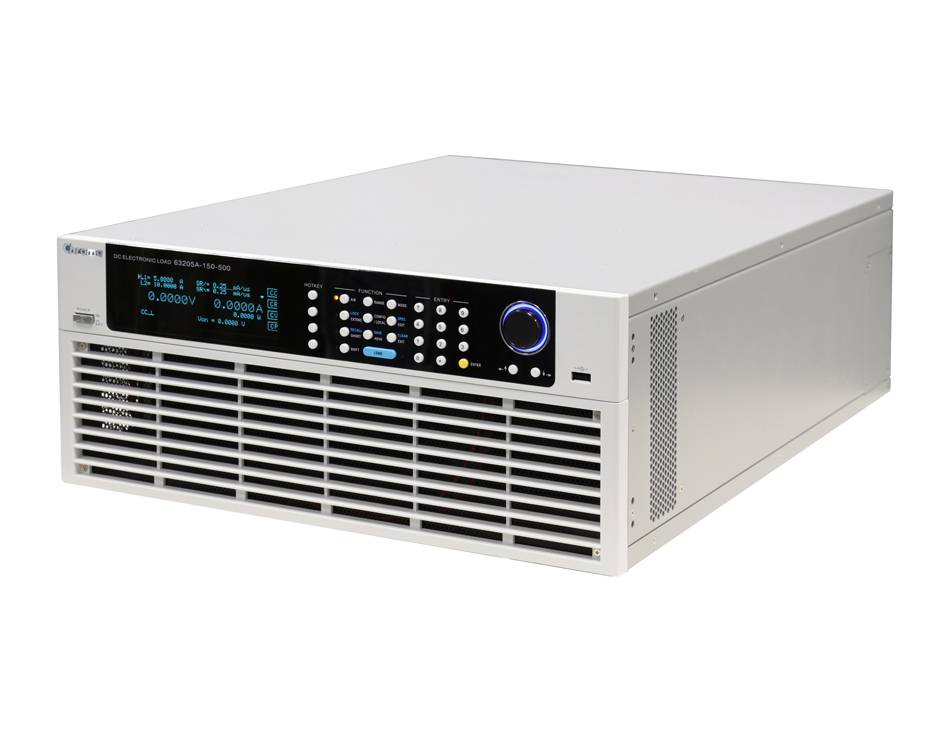

High Power DC Electronic Load Model 63200A series

High Power DC Electronic Load Model 63200A series

The 63200A series high power DC electronic loads are designed for testing a wide range of power conversion products including AC/DC and server power supplies, DC/DC converters, EV batteries, automotive charging stations, and other power electronics components. These units can be synchronously paralleled up to 240kW and dynamically synchronized for generating complex multi-channel transient profiles. The 300% peak overpower capability provides extra headroom for fault condition simulations in automotive batteries, fuel cells, and more.

High Power DC Electronic Load Model 63200A series

Key Features

  • Rated power: 2kW, 3kW, 4kW, 5kW, 6kW, 12kW, 18kW, 24kW, Max. 240kW (Parallel)
  • Voltage range: 0-150V, 0-600V, 0-1200V
  • Current range: 2,000A max. per unit
  • CC, CR, CV & CP operation modes
  • CR+CC, CR+CV, CC+CV complex modes
  • Up to 10 units master/slave parallel control
  • Dynamic synchronous control in static and dynamic loads
  • User defined waveform (UDW)
  • CZ mode for turn on capacitive load simulation
  • External loading current simulation
  • Auto frequency sweep up to 50kHz
  • Real time power supply load transient response simulation & Vpk+/- measurement
  • User programmable 255 sequential front panel input status
  • Ultra high precision voltage & current measurement
  • Precision high speed digitizing measurement/data capture
  • Voltage, current & Pmax measurement for OCP/OLP tesing
  • Timing & discharging measurement for batteries
  • Instant overpower loading
  • Short circuit simulation
  • Smart fan control
  • Full protection: OC (adjustable), OT,OP (adjustable) protection & OV warning
  • Standard USB, optional Ethernet and GPIB interfaces
