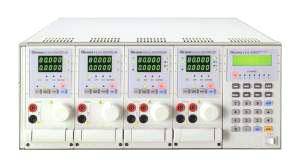

High Speed DC Electronic Load Model 6330A series

High Speed DC Electronic Load Model 6330A series

Chroma Model 6330A series high speed DC electronic improves CPU clock, baud rate, parser and added synchronic parallel function for fast operation, which is ideal for auto test system integration to increase your manufacturing test throughput. Plugging the user selectable load modules into the system mainframe can also provide easy system configuration and future reconfiguration configure the system.

High Speed DC Electronic Load Model 6330A series

Key Features:

  • Improve operating speeds of load for auto test system integration
  • Synchronous paralleling control mode, allow Synchronous load control under static and dynamic Loading mode up to 6000W
  • Up to 8 channels in one mainframe, fit for testing Multiple output SMPS.
  • GPIB/RS-232/USB Interface
  • Max Power: 200W, 100W x 2(Dual), 30W&250W, 300W, 600W, 1200W
  • Voltage Range: 0~80V / 0V~500V
  • CC, CR, CV, CP operating modes
  • Dynamic loading with speed up to 20kHz
  • Programmable slew rate, up to 10A/ÎĽs
  • Only need 1V to draw rated current
  • Individual panel meters
  • Real time power supplies load transient response simulation and output measurement
  • 16-bit precision voltage and measurement with dual-range selection
  • Remote sensing capability
  • Short circuit test
  • Self-test at power-on
  • CE marking
