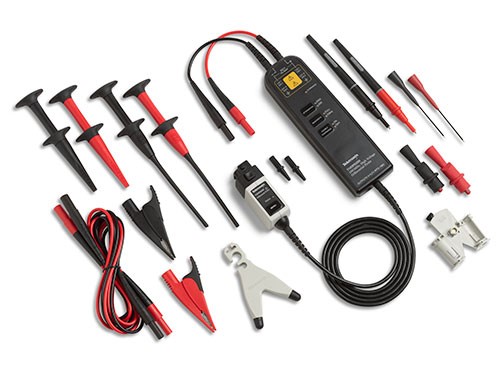

High Voltage Differential Probes

High Voltage Differential Probes

A high voltage differential probe is used for measuring the voltage difference between two test points where neither test point is at ground.  High voltage differential probes from Tektronix can be used for signals up to 6000 V.  These probes are the best choice for making non-ground referenced, floating or isolated measurements in large part due to their common mode rejection capability. These products are designed, manufactured, and serviced by Tektronix.

Tektronix High Voltage Differential Probe solutions offer:

  • Best-in-class bandwidth and probe loading
  • The only products with 3rd Party Safety Certification (UL, CSA, ETL)
  • High and medium voltage products to support varying dynamic range and measurement resolution requirements
  • Most extensive set of probe accessories

High Voltage Differential Probes

Key performance specifications
  • Bandwidths up to 200 MHz
  • Up to 6000 V differential (DC + pk AC)
  • Up to 2300 V common (RMS)
Key features
  • Overrange Indicator
  • Safety Certified
  • Switchable Attenuation
  • Switchable bandwidth limit
Applications
  • Floating measurements
  • Switching power supply design
  • Motor drive design
  • Electronic ballast design
  • CRT display design
  • Power converter design and service
  • Power device evaluation
Connectivity
    • BNC interface (P5200A probes)
    • TekVPI® interface (TMDP and THDP Series probes)
    • TekProbe® interface (P5202A, P5205A, and P5210A Series probes)
