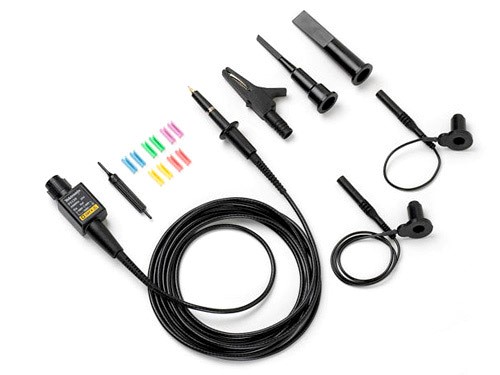

High Voltage Single Ended Probes

High Voltage Single Ended Probes

A high voltage single-ended probe is typically used for measuring ground referenced signals up to 40 kV. However, some single-ended probes are designed for instruments with isolated or floating inputs for measurements that are not ground referenced. Users should select probes with a low input capacitance specification (< 4 pF) to minimize the probe’s loading effect on the circuit because a probe with lower input capacitance will offer higher input impedance at higher frequencies.

Tektronix High Voltage Probe solutions offer:

  • Best-in-class bandwidth up to 800 MHz
  • Best-in-class probe loading with input capacitance as low as 1.8 pF
  • The only products with 3rd Party Safety Certification (UL, CSA, ETL)
  • Most extensive set of probe accessories

High Voltage Single Ended Probes

Key performance specifications
  • P5100A
    • DC to 500 MHz
    • 2500 VPeak, 1000 VRMS CAT II
    • 100X with readout coding
  • TPP0850
    • DC to 800 MHz
    • 2500 VPeak, 1000 VRMS CAT II
    • 50X with readout coding
    • Designed for use with the MSO/DPO5000 and MSO/DPO4000B Series Oscilloscopes
  • P5122
    • DC to 200 MHz
    • 1000 VRMS CAT II when DC-coupled*1
    • 100 X
    • Floatable up to 600 VRMS CAT II
    • For TPS2000 and THS3000 Series Oscilloscopes
  • P5150
    • DC to 500 MHz
    • 2500 VPeak, 1000 VRMS CAT II
    • 50 X
    • Floatable up to 600 VRMS CAT II or 300 VRMS CAT III
    • For TPS2000 and THS3000 Series Oscilloscopes
  • P6015A
    • DC to 75 MHz
    • High Voltage - 20 kV DC / 40 kV Peak (100 ms Pulse Width)
    • Optional 1000X readout coding
Applications
  • Power supply design
  • Design motor drive
  • Electronic ballast
  • Power semiconductors
  • Switch mode control
  • UPS systems
  • Power converters
