MCA3000

MCA3000

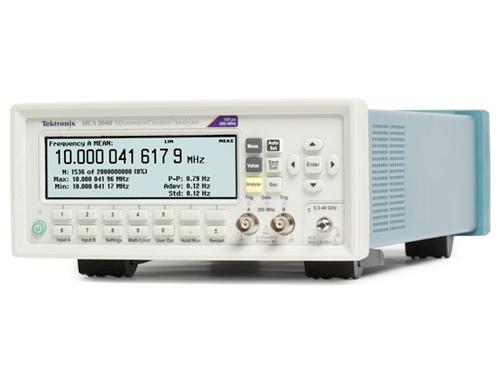

Offering up to 40 GHz measurements, the Tektronix MCA3000 Microwave Analyzer Series packs many different functions into one feature-rich instrument. The integrated power meter and two additional timer/counter channels offer you even more test functionality than other microwave analyzers on the market. With unprecedented resolution, you can capture very small frequency and time changes. And with the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.

MCA3000

Key performance specifications
  • 27 GHz and 40 GHz models
  • Microwave analyzer channel with CW or Burst
  • Two 300 MHz general-purpose channels
  • 100 ps single-shot time resolution
  • 12 Digit/s frequency resolution, 14 digit display
  • 25 ms (auto) or zero (manual) acquisition Time
  • 3 mV voltage resolution
  • Optional 1.5Ă—10–8 ultra high-stability oven time base
  • –35 dBm to +10 dBm power range
Key features
  • Measurement throughput
    • 250k Sample/s data transfer rate to internal memory (up to 750k samples stored)
    • 5k sample/s data transfer rate over USB/GPIB bus (block mode)
  • Available functions and features
    • Automated measurements: frequency, period, ratio, time Interval, time interval error, pulse width, rise/fall time, phase angle, duty cycle, maximum voltage, minimum voltage, peak-to-peak voltage
    • Integrated power meter
    • Multi-measurement display
    • Trend plot mode
    • Measurement statistics mode
    • Histogram mode
    • Allan deviation
    • Zero dead-time frequency/period measurements
Connectivity
  • USB device and GPIB ports on rear panel for quick PC connectivity
  • GPIB interface supports full SCPI-compatible programmability and offers an emulation mode for Plug-and-Play replacement in existing ATE systems
  • External arming input
  • 10 MHz reference oscillator output
  • Includes national instrument’s LabVIEW SignalExpress™ TE limited edition software for connecting your bench
Optional application software
    • Optional TimeView™ software available for modulation domain analysis
