Passive Probe

Passive Probe

Passive voltage probes ship standard with most oscilloscopes and provide a low cost, general purpose probing solution. Generally, these probes lack the performance of an active voltage probe but provide the ruggedness and wide dynamic range suitable for visualizing signals over a broad range of applications. Tektronix has released a new class of passive probes that redefine performance in the passive probe product category.

Tektronix new class of passive probe solutions offer:

  • Best-in-class bandwidth up to 1 GHz
  • Best-in-class input capacitance as low as 3.9 pF which minimizes probe loading effects
  • Best-in-class input capacitance which minimizes performance loss when long ground leads are attached
  • Automated probe compensation eliminating the need for the compensation screwdriver

Passive Probe

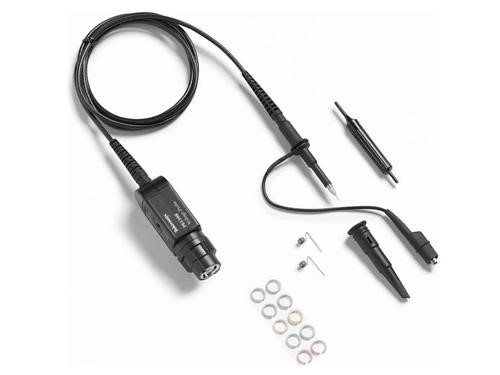

TPP0051 Passive Voltage Probe

The TPP0051 probe is for use on BNC oscilloscopes with 1 MΩ/20 pF inputs.

Key performance specifications
  • 10X attenuation
  • 50 MHz bandwidth
  • 1.3 m length
  • UL61010-031; 2007, CAN/CSA C22.2 No. 61010-031-07, IEC61010-031; IEC 61010-031/A1:2008
Applications
  • Low-frequency measurements
  • Low-frequency computer and telecom measurements
  • Power supplies
  • Low-frequency amplifiers
