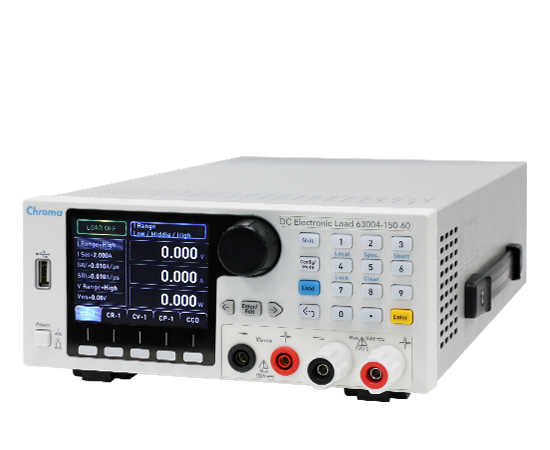

Programmable DC Electronic Load Model 63000 Series

Programmable DC Electronic Load Model 63000 Series

The 63000 Series programmable DC electronic loads are reliable, precision instruments primarily designed to test switching power suppl ies, A/D power suppl ies, power electronic components, adapters, 3C batteries and chargers. Its maximum 350W rated power makes it suitable for testing numerous types of lower power devices.

Programmable DC Electronic Load Model 63000 Series

Key Features

  • Rated power: 250W, 350W
  • Voltage range: 150V
  • Current range: 60A max.
  • CC, CR, CV & CP operation modes
  • User-defined waveforms (UDW)
  • CZ mode for turn on capacitive loadsimulation
  • Real time power supply load transient response simulation
  • User programmable 100 sequences via front panel
  • High precision voltage & current measurement
  • Voltage, current & Pmax measurement for OCP/OLP test
  • Timing & discharging measurement for batteries
  • Short circuit simulation
  • Smart fan control
  • Full protection: OC (adjustable), OT, OP (adjustable) protection & OV warning, polarity reverse alarm
  • Standard USB, optional Ethernet and GPIB interfaces
