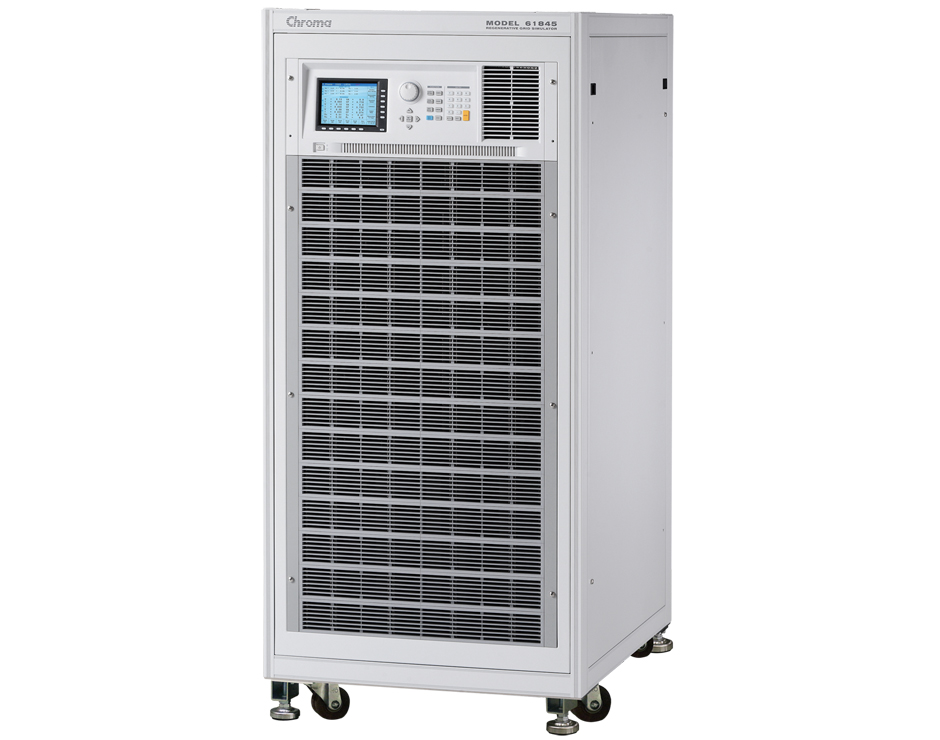

Regenerative AC load function Model 61800 Series Optional Function

Regenerative AC load function Model 61800 Series Optional Function
Overview
Model
Download
Key Features:
- 61800 series optional function
- Operating voltage: 50~300VLN
- Operating frequency: 30~100Hz
- Support CC rectified mode, CP rectified mode, CR mode, CC phase lead/lag mode and CP phase lead/lag mode
- The regenerative AC load function consists of various modes such as CC Rectified mode, CP Rectified mode, CR mode, CC Phase lead/lag mode and CP Phase lead/ lag mode.
- The Rectified Mode is capable of simulating non-linear rectified loads with characteristics similar to Chroma 63800 series AC load where the voltage and current operate at the 1st and 3rd quadrant. The Rectified Mode supports both CC and CP functions with current, power and CF as parameter settings.
