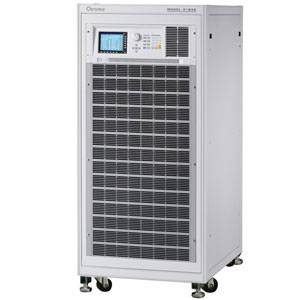

Regenerative Grid Simulator Model 61800 series

Regenerative Grid Simulator Model 61800 series
Overview
Model
Download
Key Features:
- Output power
61830 : 30kVA ; 61845 : 45kVA ;
61860 : 60kVAÂ ; 61800-100Â : 105kVA - Output voltage: 0-300V,
400V (option*1), 500V (option*2) - Output frequency: DC, 30Hz-100Hz
- User selectable single phase or three phase output
- Full 4 quadrant, fully regenerative up to 100% of output current rating
- Specifically designed for PV inverter, Smart Grid and EV related test applications
- Programmable slew rate settings for voltage and frequency
- Programmable voltage and current limits
- Turn on, turn off phase angle control
- LIST, PULSE, STEP mode functions for testing Power Line Disturbance (PLD) simulation
- Voltage dips, short interruption and voltage variation simulation
- Harmonics, inter-harmonics waveform synthesizer
- Comprehensive measurement capability, including current harmonics
- Analog programmable interfaces
- Remote interface: GPIB, RS-232, USB and Ethernet
- Parallel output for higher power applications (Three phase only)
- Regenerative AC load function (option*1)
- 120kVA 800VLNÂ XHV function (option*1)
