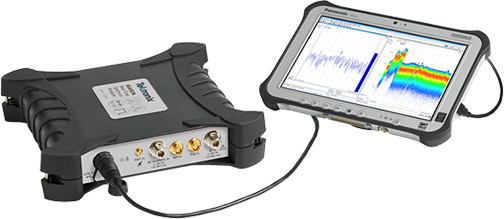

RSA500 Series Real Time Spectrum Analyzers

RSA500 Series Real Time Spectrum Analyzers

Find signals of interest and take the necessary actions to resolve issues with industries best ruggedized, portable USB Real-time Spectrum Analyzer, packed with features for your most common tasks out in the field.

·         Enable precise, real-time measurements with the RSA500 spectrum analyzer packaged in a portable, rugged form factor with advanced spectrum analysis capabilities.

·         Quickly capture VLF to Ku signals of interest from 9 kHz to 18.0 GHz with 40 MHz bandwidth capture.

RSA500 Series Real Time Spectrum Analyzers

Features

  • 9 kHz to 3.0/7.5/13.6/18.0 GHz frequency range covers a broad range of analysis needs
  • 40 MHz acquisition bandwidth enables real time analysis for transient capture and vector analysis
  • High speed full-span sweeps (70 GHz/sec) for fast setup and discovery
  • Standard GPS/GLONASS/Beidou receiver for mapping
  • Optional tracking generator for gain/loss, antenna and cable measurements
  • DataVu-PC software enables multi-unit recording in variable bandwidths
  • Mil-Std 28800 Class 2 environmental, shock and vibration specifications for use in harsh conditions
  • Internal battery for extended field operations
  • SignalVu-PC software offers real time signal processing with DPX® Spectrum/Spectrogram to minimize time spent on transient and interference hunting
  • EMC/EMI pre-compliance and troubleshooting - CISPR detectors, predefined standards, limit lines, easy accessory setup, ambient capture, failure analysis, and report generation
  • 15 ÎĽsec minimum signal duration with 100% probability of intercept ensure you see problems first time, every time
  • Application programming interface included for development of custom programs
  • Accessories including tablet PC, calibration kits, adapters and phase-stable cables offer a complete field solution for interference hunting and transmitter maintenance

Applications

  • General purpose spectrum analysis
  • Radio network installation and maintenance
  • Spectrum monitoring
  • Spectrum management
  • Interference hunting
  • EMI/EMC compliance testing and troubleshooting
  • Spectrum operations
  • Radiation hazard (RADHAZ) testing
  • Emissions control (EMCON) monitoring
  • Signal intelligence (SIGINT) monitoring
