RSA5000

RSA5000

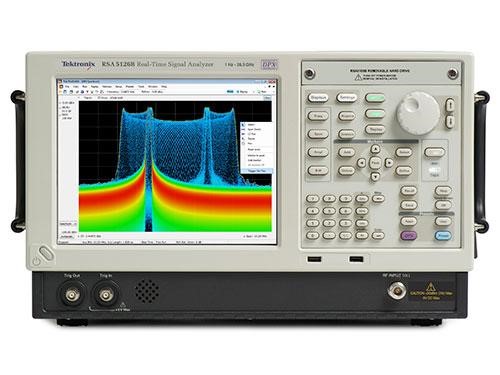

Visualize and characterize devices and components with precision and accuracy using the powerful, industry leading RSA5000B Real Time Spectrum Analyzer. This advanced spectrum analyzer makes high performance and sensitivity measurements for spurious signals much faster than other spectrum analyzers, so you can conduct conventional measurements and troubleshoot quickly, accurately and successfully.

RSA5000

Key performance specifications

  • +17 dBm 3rd order intercept at 2 GHz
  • ±0.3 dB absolute amplitude accuracy to 3 GHz
  • Displayed average noise level: –142 dBm/Hz at 26.5 GHz, –157 dBm/Hz at 2 GHz and –150 dBm/Hz at 10 kHz
  • Internal Preamp available: DANL of -156 dBm/Hz at 26.5 GHz, -167 dBm/Hz at 2 GHz
  • Phase noise: –113 dBc/Hz at 1 GHz and –134 dBc/Hz at 10 MHz carrier frequency, 10 kHz offset
  • High-speed sweeps with high resolution and low noise: 1 GHz sweeps at 10 kHz RBW in <1 second
  • Real time spurious free dynamic range of 80 dB with HD options

Key features

Reduce Time-to-Fault and increase design confidence with Real-time Signal Processing

  • Up to 3,125,000 spectrums per second, enables 100% probability of intercept for signals of 0.434 μs
  • Swept DPX spectrum enables unprecedented signal discovery over full frequency range
  • Advanced DPX including swept DPX, gap-free DPX spectrograms, and DPX zero span with real-time amplitude, frequency, or phase
  • Triggers zero in on the Problem
  • DPX density™ trigger on single occurrences as brief as 0.434 μs in frequency domain and distinguish between continuous signals vs infrequent events
  • Advanced time-qualified, runt, and frequency-edge triggers act on complex signals as brief as 20 ns

Capture the widest and deepest signals

  •  25, 40, 85, 125, or 165 MHz acquisition bandwidths
  • Spurious-free dynamic range of 80 dB over the entire acquisition bandwidth with HD options
  • Acquire more than 5 seconds at 165 MHz bandwidth

Wideband preselection filter provides image free measurements in entire analysis bandwidth up to 165 MHz

More standard analysis than you expect in an everyday tool

Measurements including channel power, ACLR, CCDF, OBW/EBW, spur search, EMI detectors

Amplitude, frequency, phase vs. time, DPX spectrum, and spectrograms

Correlated multi-domain displays

  • Performance options for best real time and dynamic range and analysis options offer added value
  • High dynamic range options offer unmatched 80 dBc spurious-free analysis in the widest acquisition bandwidth
  • High performance DPX offers industry-leading minumum signal duration for 100% probability of intercept
  • Optional software applications to add dedicated measurements for specific applications and standards
  • AM/FM/PM modulation and audio measurements (Opt. 10)
  • Phase noise and jitter (Opt. 11)
  • Automated settling time measurements (frequency and phase) (Opt. 12)
  • More than 30 pulse measurements, acquisition of more than 200,000 pulses possible for post analysis and cumulative statistics. (Opt. 20)
  • General purpose modulation analysis of more than 20 modulation types (Opt. 21)
  • Simple and complete APCO Project 25 transmitter compliance testing and analysis for Phase 1 (C4FM) and Phase 2 (TDMA) (Opt. 26)
  • WLAN analysis for 802.11 a/b/g/j/p, 802.11n, and 802.11ac (Opts. 23, 24, 25)
  • Noise figure and gain measurements (Opt. 14)
  • Bluetooth® Analysis (Opt. 27 and Opt. 31)
  • Manual and automatic measurement mapping plus signal strength function provides audio tone and visual indication of received signal strength (Opt. MAP)
  • LTE™ FDD and TDD Base Station (eNB) Transmitter RF measurements (Opt. 28)
  • Signal Classification and Survey
  • EMC/EMI pre-compliance and troubleshooting (Opt. 32)

Applications

  • Wideband radar and pulsed RF signals
  • Frequency agile communications
  • Broadband satellite and microwave backhaul links
  • Education
  • Long Term Evolution (LTE), Cellular
  • EMC/EMI pre-compliance and troubleshooting
