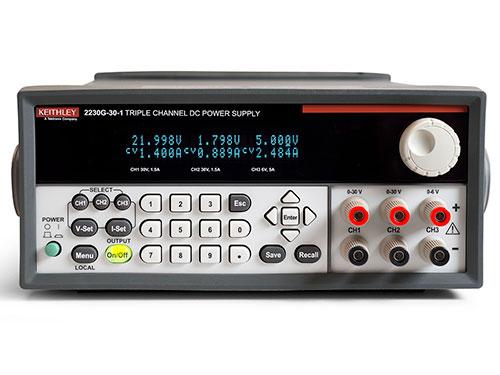

Series 2230G High Power, 3-Channel Programmable Power Supplies

Series 2230G High Power, 3-Channel Programmable Power Supplies

Series 2230G power supplies provide up to 375 W of power in a compact 2 U high, half-rack wide enclosure. The 2230G-30-6 offers up to 6 A from two channels; the 2230G-60-3 offers up to 60 V from two channels. Adjustable, independent, and isolated channels can test two single voltage devices or a multiple voltage device with one power supply. Combine 30 V channels in series to increase voltage up to 60 V, or connect two or three channels in parallel to output as much as 15 A using the 2230G-30-6.

.

Series 2230G High Power, 3-Channel Programmable Power Supplies

Key Features

  • Choose from one 195 W model and two 375 W models
  • 195 W model has two 30 V, 3 A channels and one 5 V, 3 A channel
  • 375 W models have two 30 V, 6 A channels or two 60 V, 3 A channels and one 5 V, 3 A channel
  • All channels are independently controlled and are isolated to power a wide range of test setups
  • All channels have remote sensing so the programmed voltage is accurately applied to the load
  • Set and monitor output voltages with 0.03% basic accuracy and 1 mV resolution
  • Monitor load current with 0.1% basic accuracy and 1 mA resolution
  • Low noise, linear regulation with <1 mV rms ripple and noise
  • Combine channels in series to output as high as 60 V and in parallel with two or three channels to create capacity as high as 15 A (2230G-30-6)
  • Voltage and current outputs of three channels are displayed simultaneously for immediate observation of each output state
  • USB, GPIB, and RS-232 interfaces and rear panel connections for automated test convenience

Applications

  • Series 2230G power supplies are ideal for testing:
  • High power analog ICs
  • Automotive circuits
  • Telecom infrastructure circuits
  • LED driver circuitry
