Solar Array Simulator Model 62000H-S series

Solar Array Simulator Model 62000H-S series

The latest programmable solar array simulator power supply 62000H-S Series released by Chroma provide simulation of Voc (open circuit voltage) up to 1800V and Isc (short circuit current) up to 30A. The 62000H-S provides an industry leading power density in a small 3U high package. The solar array simulator is highly stable and has a fast transient response design, which are both advantageous to MPPT performance evaluation on PV inverter devices.

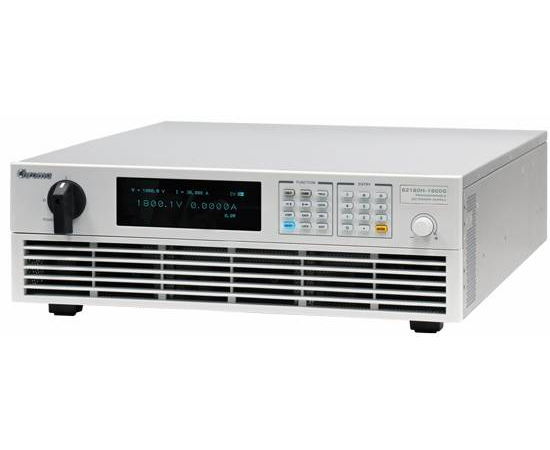

Solar Array Simulator Model 62000H-S series

Key Features:

  • Voltage range : 0 ~150V/600V/1000V/1500V/1800V
  • AC input voltage range : 200/220Vac, 380/400Vac , 440/480Vac
  • 3U/18kW high power density module with easy master/slave parallel operation
  • Fast transient response solar array simulation
  • Simulation of multiple solar cell material's I-V characteristic (fill factor)
  • Simulation of dynamic irradiation intensity and temperature level from clear day to cloud cover conditions
  • Shadowed I-V curve output simulation (up to 4096 data points)
  • Low leakage current (< 3mA)
  • Precision V & I measurements
  • Auto I-V program: 100 I-V curves & Dwell time 1-15,000s
  • Static & dynamic MPPT efficiency test (accumulated energy methods)
  • Data recorded via softpanel
  • Standard USB / RS232 / RS485 interface
  • Optional GPIB / Ethernet interface
  • Real time analysis of PV inverters' MPPT tracking via softpanel
  • Free graphic user interface - softpanel for operation
  • Real world weather simulation fast I-V curve update rate : 1s
  • Support up to ten-channel SAS control for multi-MPPT testing

Build-in dynamic MPPT test profile of EN50530, Sandia, CGC/GF004 and NB/T 32004
