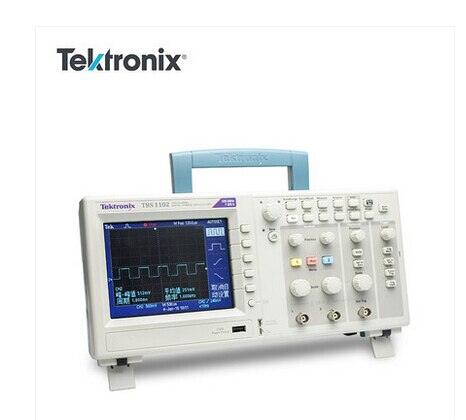

TBS1000

TBS1000

TBS1000 Series digital oscilloscopes enables engineers and educators to view signals with confidence. Each model features digital real-time sampling up to 2 GS/s, familiar, easy to use controls, built-in, context sensitive help system and a standard 5-year warranty. Choose the version that best suits your needs and application, whether two or four channels, R&D or education.

Key performance specifications

  • 200 MHz, 150 MHz, 100 MHz, 60 MHz and 70 MHz bandwidth models
  • 2-4 channel models
  • Up to 1-2 GS/s sample rate on all channels
  • 5k point record length on all channels
  • Advanced triggers including pulse and line-selectable video triggers

Key features

  • 16-34 automated measurements, and FFT analysis for simplified waveform analysis
  • Probe check wizard
  • Multiple-language user interface
  • 7 in. (144 mm) Active TFT Color Display
  • Small footprint and lightweight - Only 4.9 in. (124 mm) deep and 4.4 lb. (2 kg)
  • 7 inch WVGA (800X480) Active TFT Color Display
  • Dual window FFT, simultaneously monitors both the time and frequency domains
  • Built-in waveform limit and TrendPlot™ testing
  • Dual channel frequency counter
  • Zoom Function
  • Automated, extended data logging feature
  • Autoset and auto-ranging functions
  • Built-in context-sensitive help

Connectivity

    • USB 2.0 host port on the front panel for quick and easy data storage
    • USB 2.0 device port on rear panel for easy connection to a PC or direct printing to a PictBridge®-compatible printer
    • Includes Tektronix OpenChoice® software for connecting your bench
