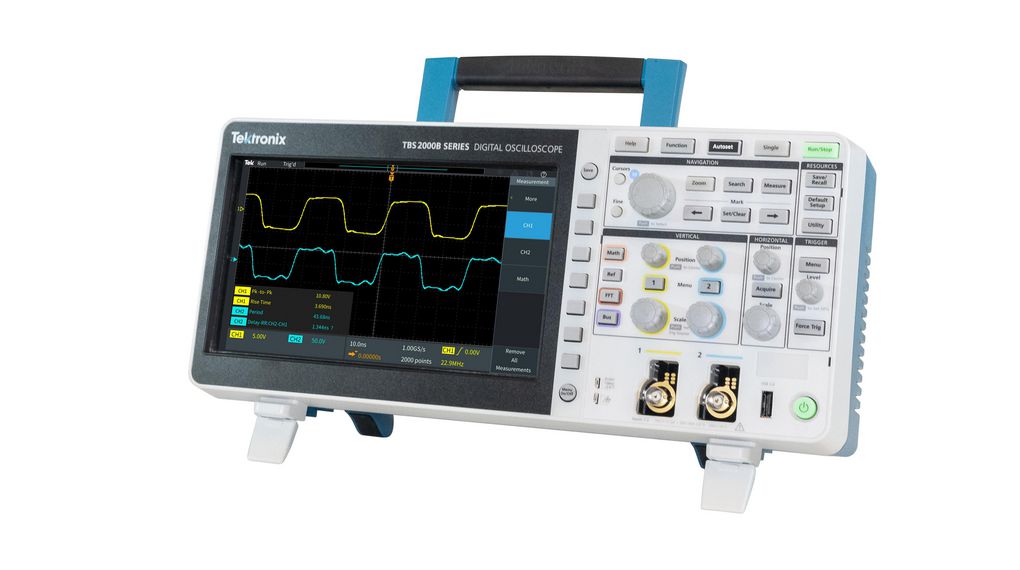

TBS2000B

TBS2000B

The TBS2000B is one of the most versatile scopes in its class, providing measurement insights for today’s leading applications, including embedded design, power supply measurement and power management analysis, education and classroom/lab instruction, and more. As a valuable tool for educators, the TBS2000B enables instructional professionals to devote more time to teaching engineering students and less time to laboratory and instrument setup. It’s the perfect complement to today’s engineering bench: versatility, accuracy, and priced at an affordable value.

Key performance specifications

  • 2 and 4 analog channel models
  • 200 MHz, 100 MHz, and 70 MHz bandwidth models up to 2 GS/s sampling rate
  • 5 M record length on all channels
  • 5 year warranty

Key features

  • 9-inch WVGA color display with 15 horizontal grids shows 50% more signal
  • TekVPI probe interface supports active, differential, and current probes with automatic scaling and units
  • New front-end design enables more accurate measurements
  • 32 automated measurements, and FFT function for quick waveform analysis
  • Search and Mark features for easy identification of events that occur in the acquired waveform
  • HelpEverywhere provides helpful on-screen tips for new users
  • Built-in Scope Intro handbook provides operating instructions and oscilloscope fundamentals
  • The instrument user interface and the front panel overlay is translated into 10 languages

Connectivity

    • USB 2.0 host port on the front panel for quick and easy data storage
    • USB 2.0 device port on rear panel for easy connection to a PC
    • 10/100BASE-T Ethernet port for remote control over LAN
    • Wi-Fi interface provides wireless communications capability support 1
