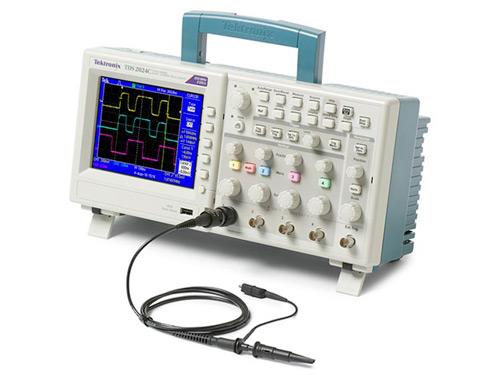

TDS2000C

TDS2000C

The TDS2000C Oscilloscope Series provides you with affordable performance in a compact design. Featuring Tektronix proprietary technology, the digital real-time sampling architecture means you can accurately see small signal details. Every model is packed with standard features, including USB connectivity, 16 automated measurements, limit testing, built-in help menu and a Lifetime Warranty**. Get more done in less time with the TDS2000C Oscilloscope Series.

  • Key performance specifications
    • 200 MHz, 100 MHz bandwidth models
    • 2- and 4-channel models
    • Up to 2 GS/s sample rate on all channels
    • 5k point record length on all channels
    • Advanced triggers including pulse width trigger and line-selectable video trigger

    Key features

    • 16 automated measurements and FFT analysis for simplified waveform analysis
    • Built-in waveform limit testing
    • Automated, extended data logging feature
    • Autoset and signal auto-ranging
    • Built-in context-sensitive help
    • Probe check wizard
    • 11-language user interface
    • 144 mm (5.7 inch) active TFT color display
    • Small footprint and lightweight - only 124 mm (4.9 inches) deep and 2 kg (4.4 lb)
    • USB 2.0 host port on the front panel for quick and easy data storage
    • USB 2.0 device port on the rear panel for easy connection to a PC or for direct printing to a PictBridge® -compatible printer
    • Includes Tektronix OpenChoice® Software for connecting to your oscilloscopes
    • Lifetime warranty. Limitations apply. For terms and conditions, visit www.tek.com/lifetimewarranty
