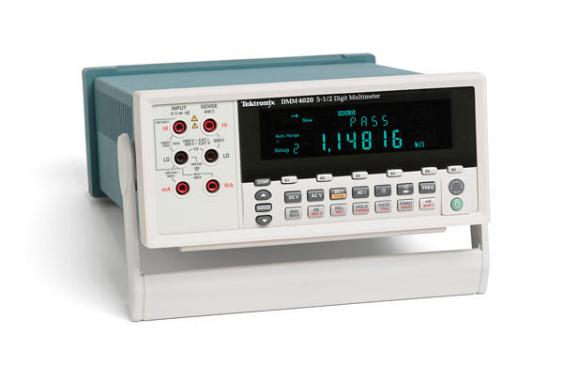

Tektronix 4000 Series: 5½- and 6½-Digit Multimeters

Tektronix 4000 Series: 5½- and 6½-Digit Multimeters

The 5½-digit DMM4020 and 6½-digit DMM4050 and DMM4040 broad purpose bench multimeters deliver a comprehensive range of functions to meet your most demanding measurements on the bench or in a system.   These digital multimeters perform the functions you would expect to see in a multifunction DMM, including measuring volts, ohms, amps, and frequency measurements. The DMM4050 adds temperature and capacitance for greater versatility.

Tektronix 4000 Series: 5½- and 6½-Digit Multimeters

Key Performance Specifications

  • 5 Digit Resolution
  • Basic VDC Accuracy of up to 0.015% (1 yr.)
  • 200 mV to 1000 V Voltage Range, with up to 1 μV Resolution
  • 200 μA to 10 A Current Range, with up to 1 nA Resolution
  • 200 Ω to 100 MΩ Range, with up to 1 mΩ Resolution
  • CAT I 1000 V, CAT II 600 V



Key Features

  • Volts, Ohms, and Amps Measurements
  • True RMS (AC, AC + DC) Measurements
  • Diode and Continuity Testing
  • Frequency Measurements
  • 2×4 Ohms 4-wire Measurement Technique
  • Dedicated DC Leakage Current Measurements
  • Six Dedicated Buttons for Fast Access to Instrument Setups
  • Limit Compare Mode for Pass/Fail Testing

Connectivity

  • Front 2×4 Measurement Inputs
  • RS-232 on Rear Panel for Quick PC Connectivity
  • Includes USB to RS-232 Interface Adapter Cable
  • Includes National Instrument’s LabVIEW SignalExpress™ TE Limited Edition for Connecting Your Bench

3-year Warranty
