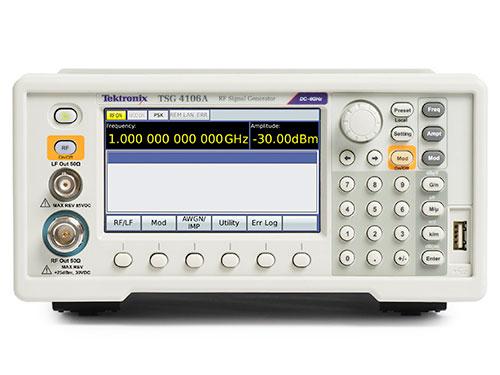

TSG4100A Series RF Vector Signal Generators
TSG4100A Series RF Vector Signal Generators offer mid-range RF performance and up to 200MHz modulation bandwidth. They allow a convenient, in-field software upgrade to easily transition units from analog to more advanced vector and digital modulation capabilities, providing the most flexible configuration and best CAPEX protection.
TSG4100A Series complement other leading mid-range RF test solutions from Tektronix, such as the USB-based RSA306 Spectrum Analyzer and MDO4000C and MDO3000 Mixed Domain Oscilloscopes.

TSG4100A Series RF Vector Signal Generators
Overview
Model
Download
Key features
- Analog and vector/digital signal generation capabilities
- Dual baseband ARB generators
- Analog modulation standard
- Soft key upgrade to vector/digital modulation at very low cost
- Digital modulation applications for GSM, EDGE, W-CDMA, APCO-25, DECT, NADC, PDC, and TETRA
- USB, GPIB, RS-232, and LAN interfaces
- 12Â pounds (5.6Â kg)
- 2U high and half standard rack width
Key performance specifications
- True DC to 2Â GHz, 4Â GHz or 6Â GHz to support both analog and vector/digital signal generation
- Typical ≤±0.30 dB amplitude accuracy (0 dBm CW signal at 22 ºC) from 10 MHz to 6 GHz
- I/Q modulation inputs (400Â MHz RF bandwidth)
- ASK, FSK, MSK, PSK, QAM, VSB, and custom I/Q
